12V / 24V Parking Climate Systems
Rooftop and split parking air conditioners for fleets, distributors and OEM projects — shipped worldwide from Qingdao.
Start partner qualification → ESC to close
R134a cooling with a scroll compressor, a 160 mm outdoor-unit height and manual / automatic air outlet control.
| Parameter | 12V DC |
| Cooling capacity (sheet BTU rating) | 7000 BTU |
| Rated electrical input | 600–800 W |
| Rated current | 45–60 A |
| Compressor | Scroll |
| Refrigerant | R134a |
| Airflow | 500 m³/h |
| Outdoor unit dimensions | 700 × 650 × 160 mm |

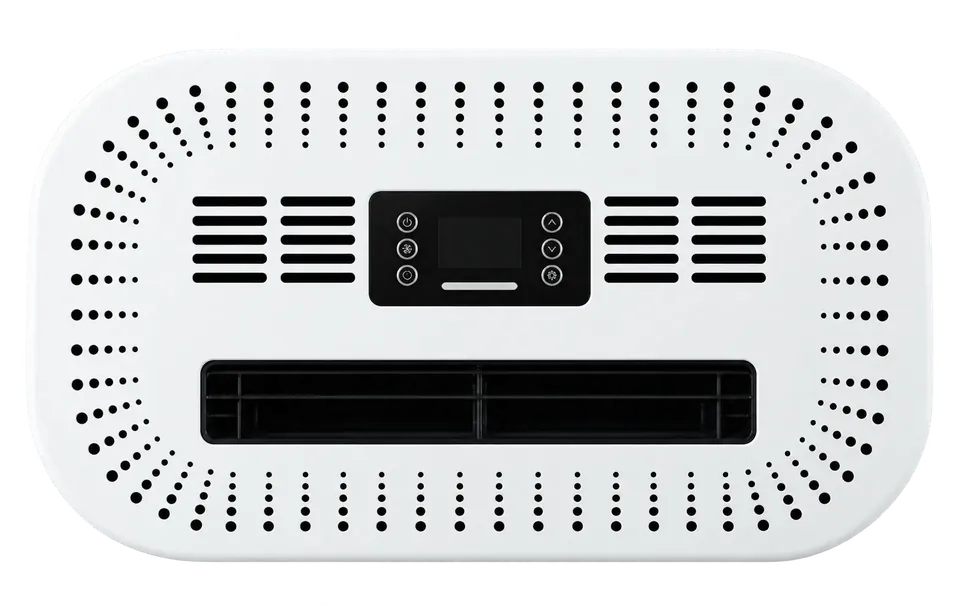

| Indoor panel dimensions | 550 × 350 mm |
| Air output method | Manual / Automatic |
| Package weight | 25 kg |
Full datasheet and application notes available on request. Data sourced from the live product page on www.vethy.com.
ROOFTOP COOLING · 12V / 24V
R134a cooling with a scroll compressor, a 160 mm outdoor-unit height and manual / automatic air outlet control.
Specify the vehicle, voltage and installation space for a configuration review.

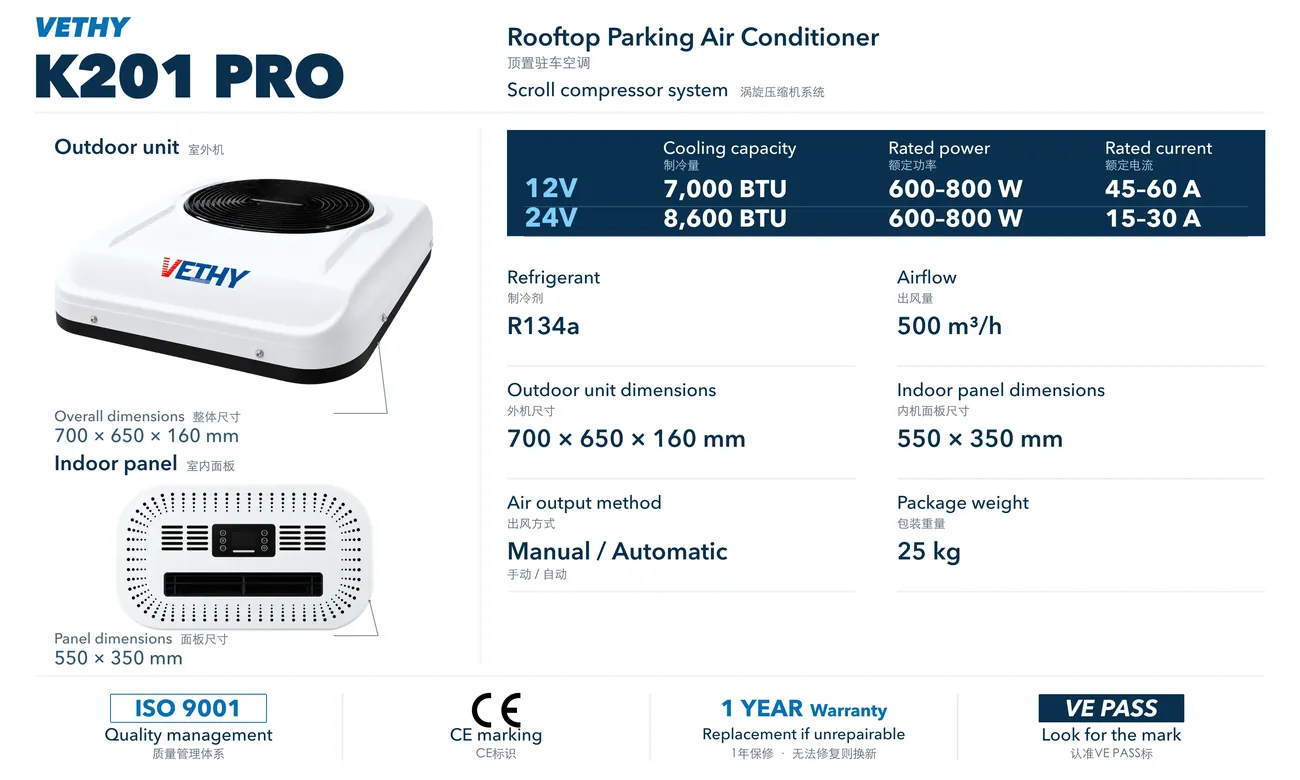

Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.
| Parameter | 12V DC | 24V DC |
| Cooling capacity (sheet BTU rating) | 7000 BTU | 8600 BTU |
| Rated electrical input | 600–800 W | 600–800 W |
| Rated current | 45–60 A | 15–30 A |
| Compressor | Scroll | |
| Refrigerant | R134a | |
| Airflow | 500 m³/h | |
| Outdoor unit dimensions | 700 × 650 × 160 mm | |
| Indoor panel dimensions | 550 × 350 mm | |
| Air output method | Manual / Automatic | |
| Package weight | 25 kg |
12V and 24V are separate configurations. Select the required voltage when ordering.
Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.
W and BTU figures are reproduced as listed in the specification graphic; no conversion has been substituted.
Select the graphic to open the full-size original.
Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.
For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.
