12V / 24V Parking Climate Systems
Rooftop and split parking air conditioners for fleets, distributors and OEM projects — shipped worldwide from Qingdao.
Start partner qualification → ESC to close
VETHY EcoMax 3S 12V split truck air conditioner with 2,200 W cooling, 2,000 W heating and GMCC twin-rotary compressor. Specifications and US fleet RFQ.
| Parameter | 12V DC |
| Cooling capacity | 2200 W |
| Cooling electrical input | 588 W |
| Cooling current | 20–49 A |
| Heating capacity | 2000 W |
| Heating electrical input | 624 W |
| Heating current | 22–52 A |
| Refrigerant charge | 500 g |
| Complete set net weight | 25 kg |
| Complete set gross weight | 29 kg |
| Refrigerant | R134a |
| Compressor type | Twin-rotary |
| Compressor brand | GMCC |
| Compressor displacement | 13 cc |
Full datasheet and application notes available on request. Data sourced from the live product page on www.vethy.com.
12V HEATING & COOLING SPLIT SYSTEM
Specify both comfort modes in your sleeper-cab project. EcoMax 3S combines a GMCC twin-rotary compressor with separate indoor and outdoor units, giving US fleet buyers a 12V option to evaluate for cooling and heating.
For fleets, distributors, upfitters and OEM purchasing teams.
For fleets, distributors and vehicle integrators evaluating a combined cooling and heating package, EcoMax 3S gives each operating mode a separate capacity, input-power and current rating. Use those figures to develop your vehicle-specific electrical and acceptance plan.
Published 12V cooling and heating ratings help your team define requirements for both operating modes.
A specified compressor brand and technology for your technical review and purchasing documentation.
Both evaporator and condenser fans use brushless motors, with airflow ratings listed separately below.
Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.
| Parameter | 12V DC | 24V DC |
| Cooling capacity | 2200 W | 2600 W |
| Cooling electrical input | 588 W | 792 W |
| Cooling current | 20–49 A | 10–33 A |
| Heating capacity | 2000 W | 2200 W |
| Heating electrical input | 624 W | 840 W |
| Heating current | 22–52 A | 12–35 A |
| Refrigerant charge | 500 g | 610 g |
| Complete set net weight | 25 kg | 23 kg |
| Complete set gross weight | 29 kg | 27 kg |
| Refrigerant | R134a | |
| Compressor type | Twin-rotary | |
| Compressor brand | GMCC | |
| Compressor displacement | 13 cc | |
| Compressor power | 645 W | |
| Refrigeration oil / Volume | VG-74 / 250 ml | |
| Evaporator airflow | 400 m³/h / Brushless motor | |
| Condenser airflow | 1500 m³/h / Brushless motor | |
| Evaporator fan motor | Brushless motor | |
| Condenser fan motor | Brushless motor | |
| Indoor unit dimensions | 638 × 335 × 187 mm | |
| Outdoor unit dimensions | 799 × 180 × 430 mm | |
| Indoor package dimensions | 695 × 485 × 295 mm | |
| Outdoor package dimensions | 940 × 330 × 530 mm | |
| Indoor net / gross weight | 6.9 / 10.5 kg |
12V and 24V are separate configurations. Select the required voltage when ordering.
Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.
Complete set weights include the indoor unit. Compressor power is a component rating, distinct from complete-system electrical input.

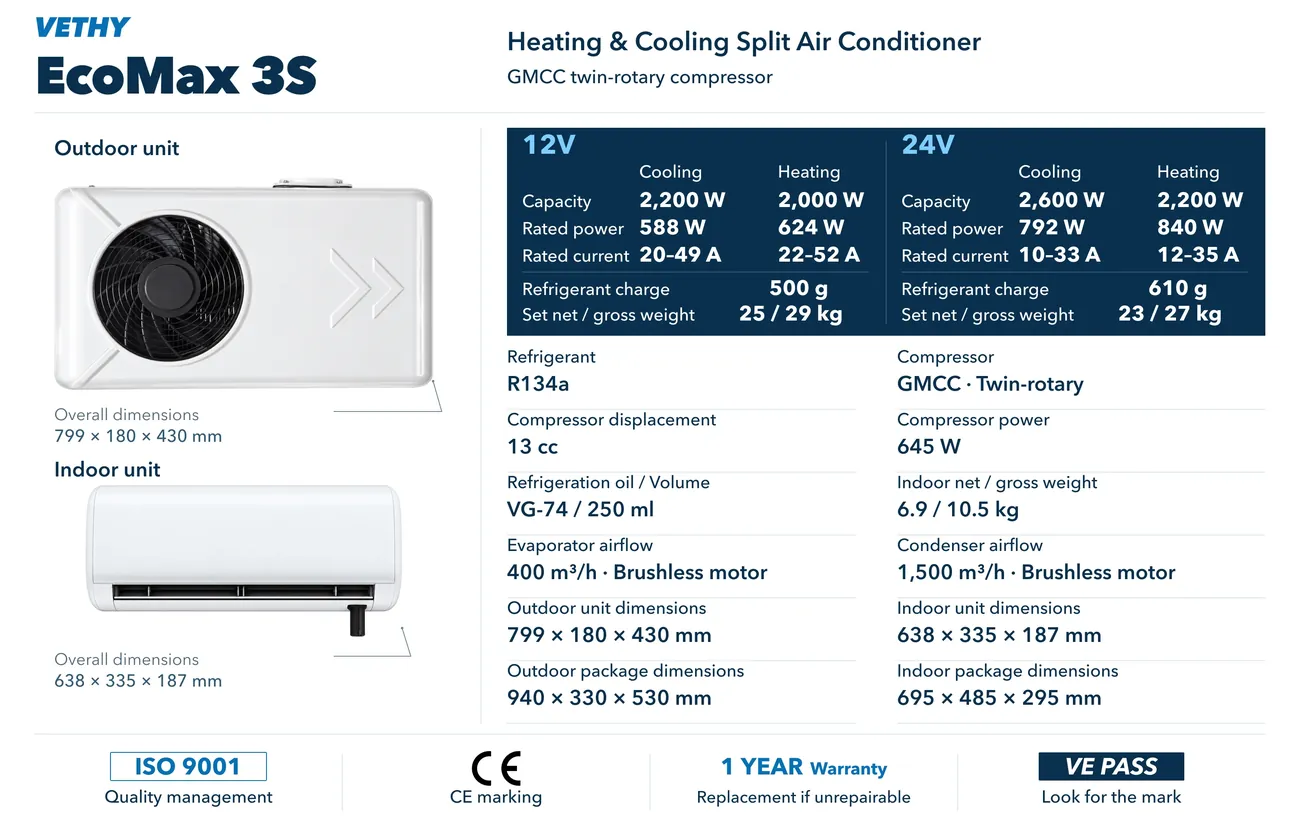

Select the graphic to open the full-size original.
FROM CAB LAYOUT TO POWER PLAN
A semi-truck installation starts with the actual tractor and duty cycle. Align your installer, maintenance team and purchasing team on these details before ordering a production batch.
Build a common specification before scaling across vehicles, branches or dealer locations.
Confirm the 12V model, included parts, installation scope, operating conditions and delivery destination.
Agree on sample quantities and acceptance criteria, then capture installation, comfort and energy results.
Request a confirmed parts list, packaging, labeling, warranty terms, service parts and applicable documentation.
Use the approved sample to agree on production quantity, lead time, shipment terms and service support.
Cooling capacity is 2,200 W, with rated electrical power of 588 W and rated current of 20–49 A. Heating capacity is 2,000 W, with rated electrical power of 624 W and rated current of 22–52 A. Capacity is thermal output; electrical power is the input load.
Fit must be reviewed for the specific tractor model, year and sleeper layout. Provide indoor and outdoor mounting dimensions, cab photos, service clearances and the proposed 12V power source. The split layout does not establish universal vehicle compatibility.
The 2,000 W heating rating alone does not establish low-temperature performance. Provide your minimum ambient temperature and comfort target, and request operating limits and validation for the proposed configuration before specifying it as the sole heating source.
Plan for both operating modes and the other parked-cab loads. Cooling and heating use different input-power and current ratings. Confirm the auxiliary battery, recharge schedule, protected wiring and low-voltage protection settings with the installer, then measure real energy use in a pilot.
Send pilot and annual quantities, destination ZIP code, vehicle details, intended operating temperatures, required included parts, service-spares needs and documentation requirements. Ask for a configuration-specific quotation and a written sample-to-production plan.
Review VX3000SP: 7,000 BTU/h cooling, 20–45 A rated current and automatic oscillation in the 12V configuration.
US FLEET · DISTRIBUTOR · OEM INQUIRY
Request an EcoMax 3S 12V quotation for your pilot, fleet rollout or distribution program.
